Who This Is For

This article is for beginners who have already made one simple ggplot and now want to answer a very common question: how do I show the distribution of one variable correctly? The focus here is not on making beautiful charts yet. It is on learning which plot type matches which kind of variable.

What You Will Do

• Use geom_bar() for a categorical variable.
• Use geom_histogram() for a numeric variable.
• Use geom_density() when you want a smoother view of shape.
• Learn how bins, fill, and alpha affect readability.

Before You Start

• You should already understand the ggplot(data = ..., aes(...)) + geom_*() pattern.
• You need ggplot2 and palmerpenguins.
• You should know the difference between a categorical variable and a numeric variable.

The companion script for this article is:

R draw/scripts/02-ggplot-from-zero-distributions.R

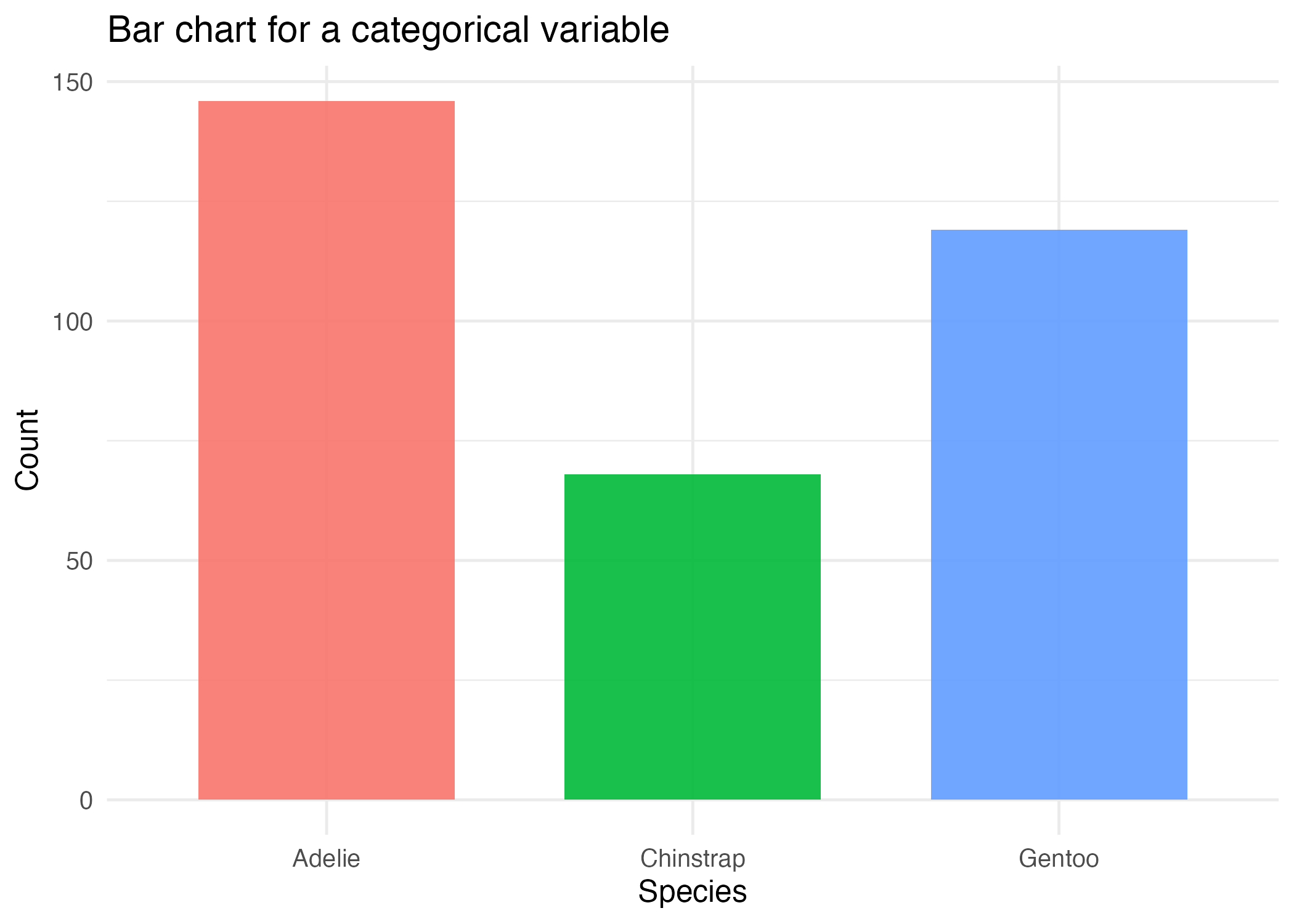

Step 1: Use a Bar Chart for a Categorical Variable

When the variable itself is a group label such as species or island, a bar chart is usually the right starting point.

ggplot(penguins_clean, aes(x = species, fill = species)) +
  geom_bar()

geom_bar() counts rows for you. That is why you only map x here and do not provide a numeric y.

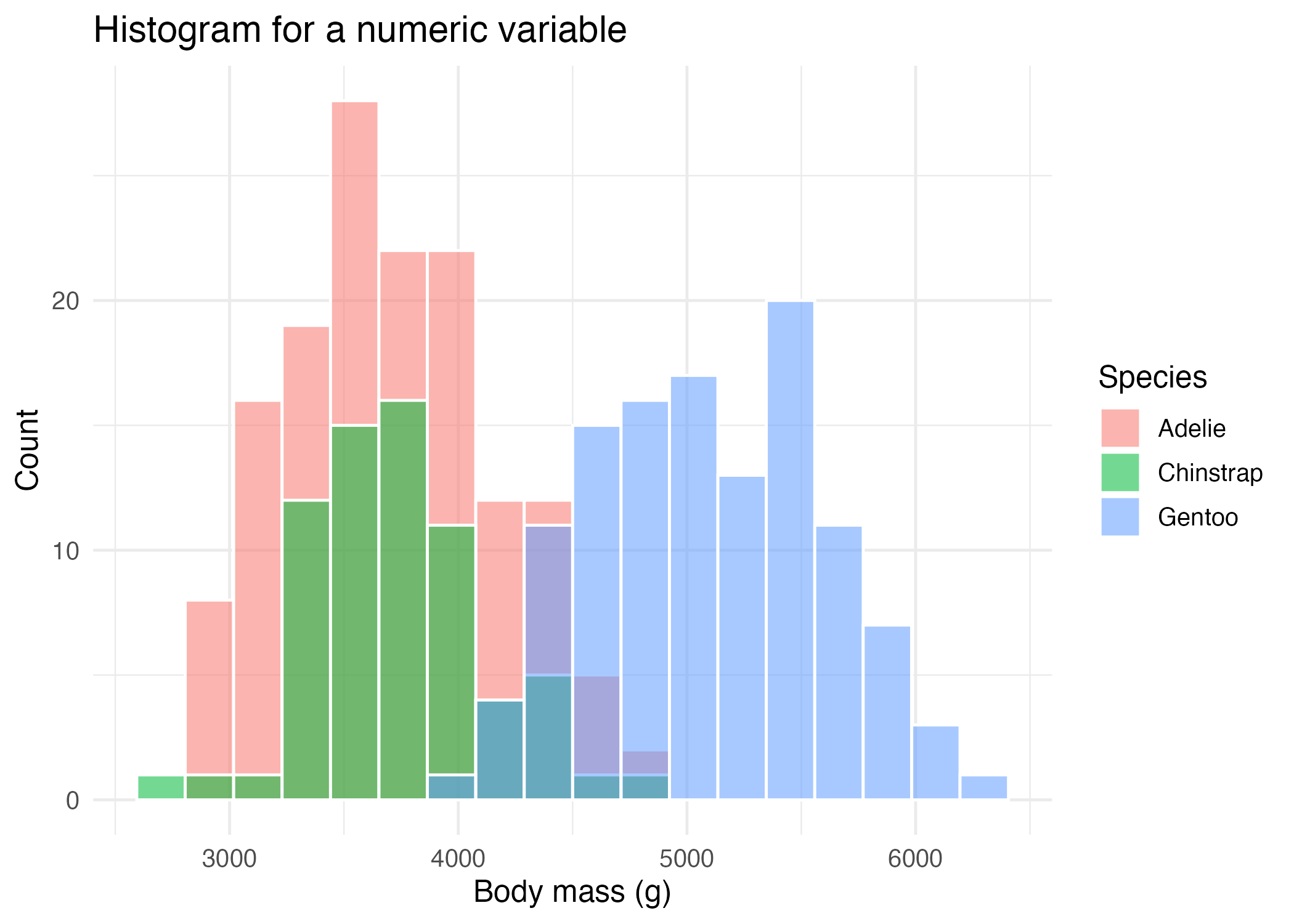

Step 2: Use a Histogram for a Numeric Variable

If your variable is numeric, such as body mass, you usually want a histogram instead.

ggplot(penguins_clean, aes(x = body_mass_g, fill = species)) +
  geom_histogram(
    bins = 18,
    alpha = 0.55,
    position = "identity",
    color = "white"
  )

Important parameters here:

• bins controls how many intervals the data is split into.
• alpha controls transparency.
• position = "identity" overlays groups instead of stacking them.
• color = "white" draws a visible outline between bins.

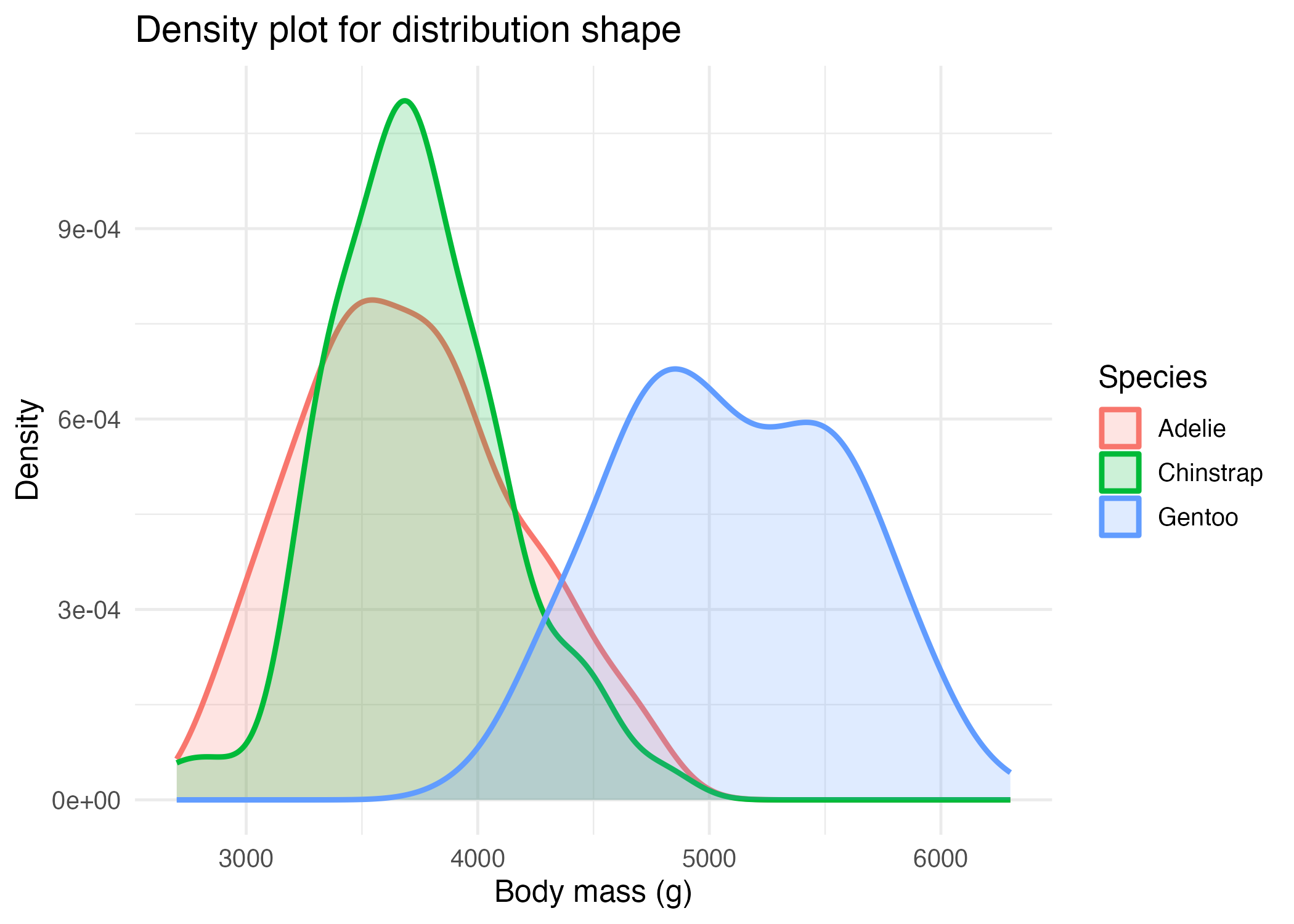

Step 3: Use a Density Plot for a Smoother Shape

Histograms are discrete because they use bins. Density plots are smoother, which can make overall shape easier to compare across groups.

ggplot(penguins_clean, aes(x = body_mass_g, color = species, fill = species)) +
  geom_density(alpha = 0.2, linewidth = 1)

This does not replace histograms forever. It simply gives you another lens on the same question.

Step 4: Choose the Plot Based on the Variable Type

Use this simple rule:

• if the variable is categorical, start with geom_bar()
• if the variable is numeric, start with geom_histogram()
• if you want a smoother comparison of numeric distributions, try geom_density()

That rule alone will prevent many beginner plotting mistakes.

How to Confirm It Worked

• Your script creates:
  • R draw/figures/02-distribution-bar.png
  • R draw/figures/02-distribution-histogram.png
  • R draw/figures/02-distribution-density.png
• You can explain why species uses a bar chart and body_mass_g uses a histogram or density plot.

Common Questions

Why not use a bar chart for numeric data?

Because bar charts are best for counts of categories, not for showing how numeric values are distributed across a range.

How do I choose the right number of bins?

Start with the default or a moderate value such as 15 to 30, then adjust and compare. Too few bins hide structure. Too many bins add noise.

When is a density plot a bad choice?

Density plots can be less intuitive for absolute counts, especially for readers who are very new to statistics. Histograms are often easier to explain first.
